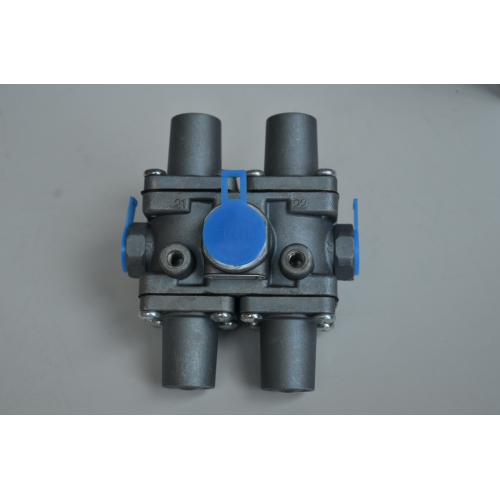

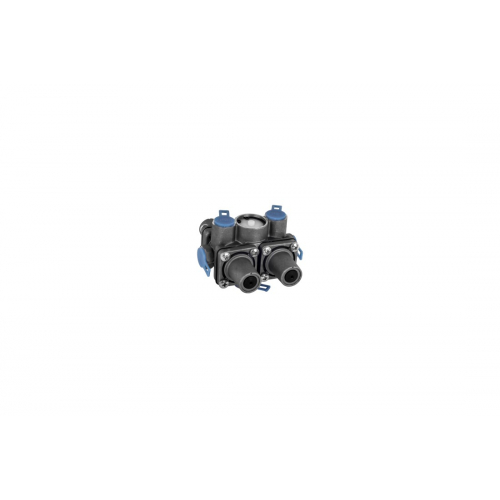

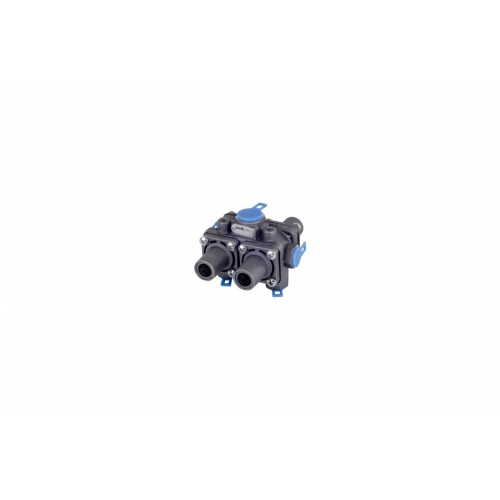

Four Circuit Protection Valve

‹ ›

Status

Active

SORL Catalog number

35150030020

Availability

9 pcs.

Cross codes:

Haldex: 314018001

Wabco: 9347023000 , 9347023007

Renault: 5000121755

MERCEDES: 0014313006 , 0014313806 , 0014313906 , 0014315806 , 0024310606 , 0024311306 , A0014315806 , A0024310606

Knorr: I70615

Kenworth: S9347023000

Volvo: 0014313006 , 20500757 , 42051732 , 81521516007 , 81521516045 , 81521516075

MAN: 81521516007 , 81521516009 , 81521516045 , 81521516049 , 81521516050 , 81521516053 , 81521516058 , 81521516062 , 81521516065

Iveco: 0014313006 , 04458151 , 04458506 , 04462569 , 04775745 , 20500757 , 42051732 , 4462569 , 81521516007 , 81521516045 , 81521516075

DAF: 271944

NEOPLAN: 110251600 , 81521516045

Make an inquiry

Characteristics of Four Circuit Protection Valve

Width 16

Weight 1.030

Thread Port 2 M16x1.5

Thread Port 12 M16x1.5

Thread step port 11 M16x1.5

Thread step port 1 M22x1.5

GR_WEIGTH 1.145

HEIGHT 13

DEPTH 10

VOLUME 0.00208

Opening pressure 1 circuit 6.8

Opening pressure 2 circuit 6.8

Opening pressure 3 circuit 6.8

Opening pressure 4 circuit 6.8
